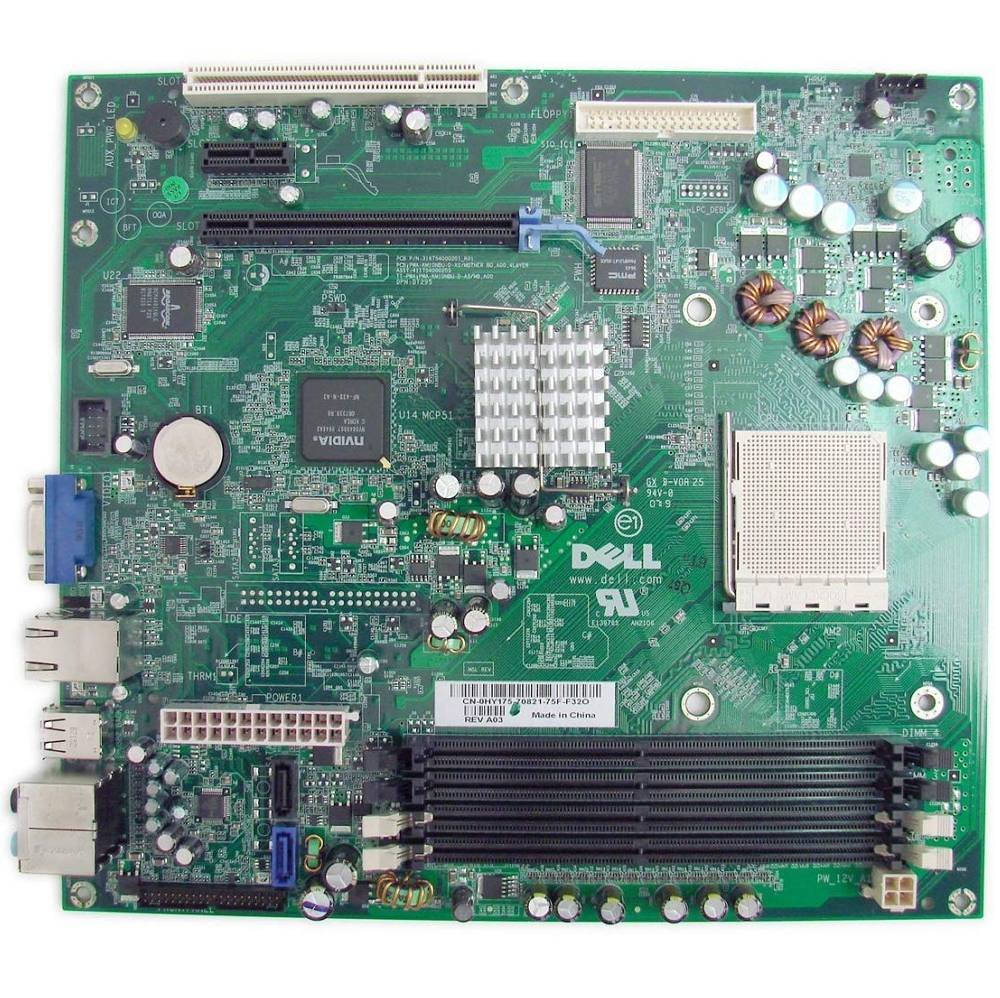

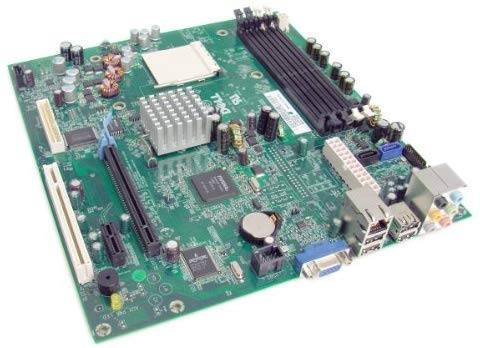

Dell Motherboard Main Logic Board AMD Athlon 64 DDR2 SDRAM For Dimension C521 Desktop Systems HY175

Description

Dell HY175 YY821 FP406 Motherboard Main Logic Board AMD Athlon 64 DDR2 SDRAM For Dimension C521 Desktop Systems Compatible Part Numbers: HY175, DR828, FP406, UT226, YW167, YY821

Motherboard Specifications:

• Chipset: nVidia GeForce 6150LE
• Processor: AMD Athlon 64 X2 Dual-Core processor, Athlon 64 and Sempron processors
• Memory: 4x 533-MHz, 667-MHz, 800-MHz z (when available) DDR2 SDRAM slots, 4gb Max Total
• Audio: Integrated Sigma Tel 9227 CODEC (7.1 Channel Audio)
• Video: nVidia integrated video (DirectX 9.0c Shader Model 3.0 Graphics Processing Unit) or PCI Express x16 graphics card

Expansion Capabilities:

• 1x PCI Slot
• 1x PCI-E x16 Slot
• 1x PCI-E x1 Slot

Peripheral Interface:

• 1x VGA Monitor Port
• 1x 10/100 Ethernet LAN Port
• 2x front-panel and 4x back-panel USB 2.0–compliant connectors
• 6x connectors for line-in and line-out; 2x front-panel connectors for headphones and microphone

Motherboard Part Number:

• HY175, DR828, FP406, UT226, YW167, YY821
