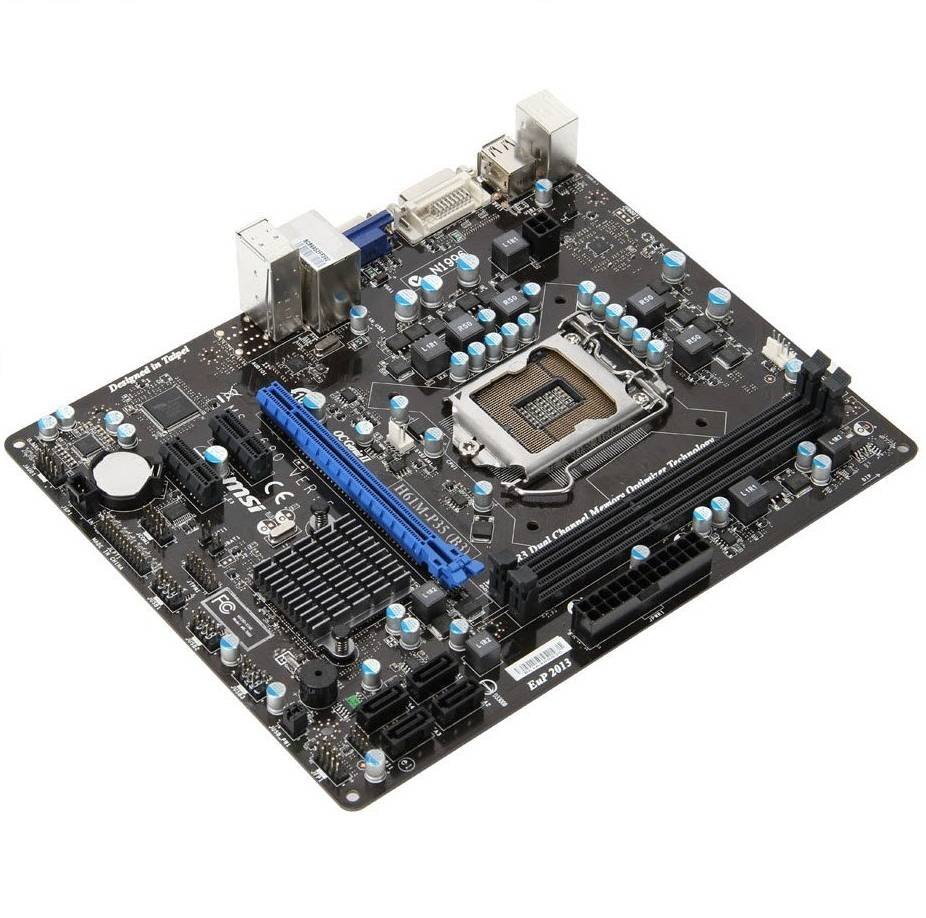

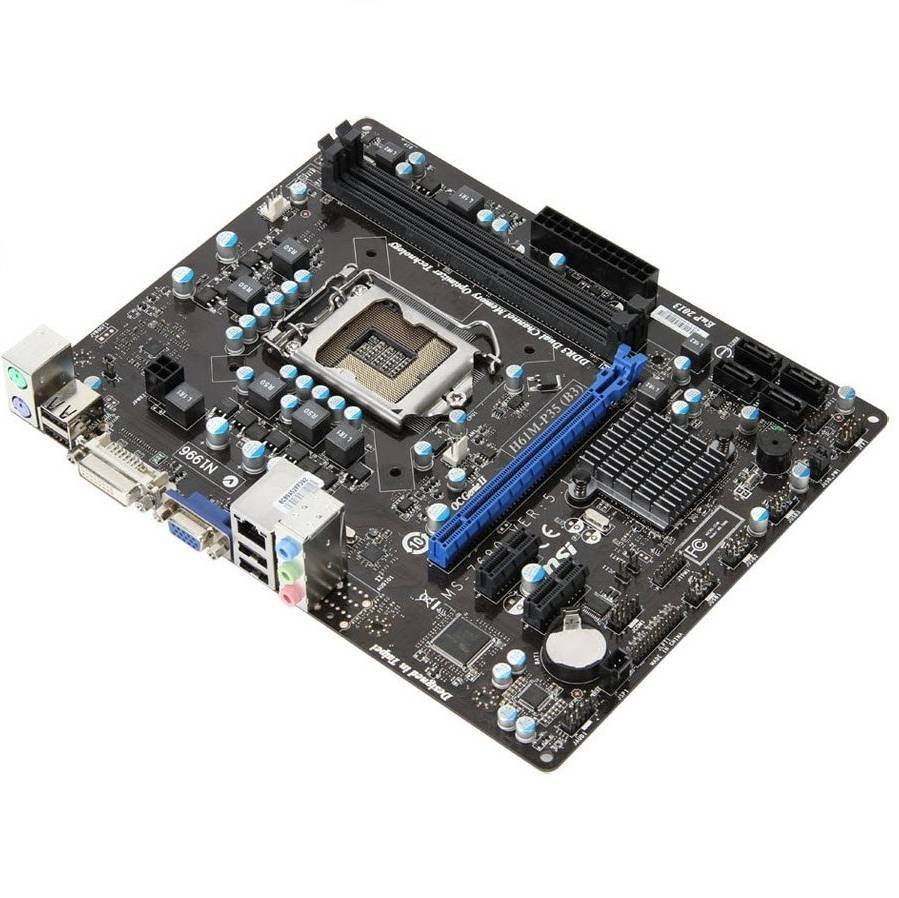

MSI H61M-P35 (B3) Motherboard specification LGA1155 MicroATX Intel H61 DDR3 DIMM

Description

Motherboard chipset

Integrated chip card / card
Chip makers Intel
Main chipset Intel H61
Description using Intel H61 chipset chipset
Display chip CPU built-in display chip (CPU support required)
Audio chip Realtek ALC887 8-channel audio chip
LAN chip onboard Realtek RTL8111E Gigabit Ethernet

Processor Specifications

Intel CPU platform
CPU Type Core i7 / Core i5 / Core i3
CPU socket LGA 1155
Description Support Intel 32nm CPU processors
Supports a number of CPU

Memory Specifications

Memory Type DDR3
2 × DDR3 DIMM memory slots
The maximum memory capacity of 16GB
Memory description support dual channel DDR3 1333 / 1066MHz memory

Expansion Slots

PCI-E 2.0 graphics slot standard
PCI-E slot 1 × PCI-E X16 graphics slot
2 × PCI-E X1 slot
SATA interface 4 × SATA II interface

I / O interface

USB interface 10 × USB2.0 interface (6 Built +4 backplane)
External ports 1 × DVI interface
1 × VGA interface
PS / 2 port PS / 2 mouse, PS / 2 keyboard port
Other interfaces 1 × RJ45 network interface
Audio Interface
